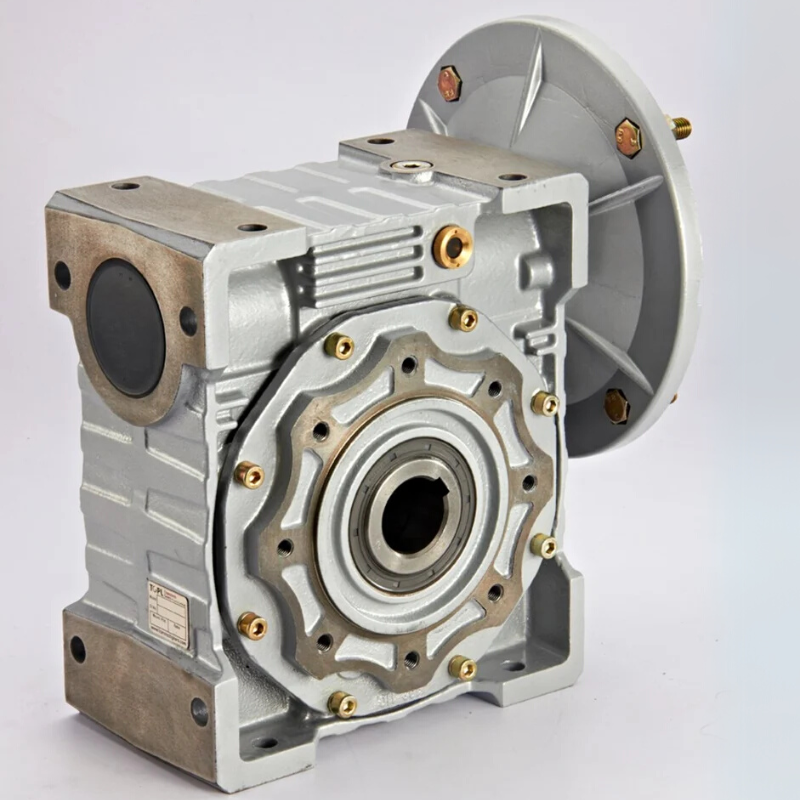

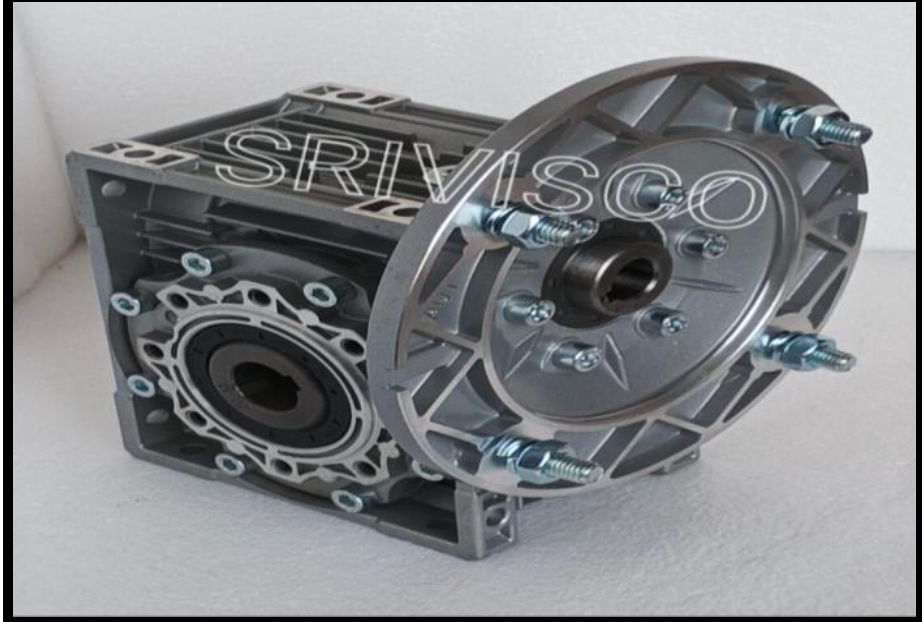

Worm Gear Box TW IEC B5 Flange Type TGPL make

• The “TW Series” from TGPL is a line of worm-gear gearboxes — i.e. a worm (screw) drives a worm-wheel (gear), producing high torque at lower output speeds.

• “IEC B5 Flange Type” refers to the mounting / input-side configuration: it uses standard IEC-flange (B5) for mounting the motor / driving shaft. This allows easy mounting of standard electric motors as per IEC norms.

• TGPL gearboxes are offered in a range of frame sizes — e.g. TW30, TW40, TW50, TW63, TW75, TW90, TW110, TW130, TW150.

🔧 Construction & Materials

• For smaller sizes (frame 30 to 90) the housing is die-cast aluminium alloy; for larger (110 to 150) it's cast iron.

• The worm shaft is made of case-hardened steel (20Cr), heat treated — resulting in a hardness of ~56–62 HRC.

• The worm-wheel (gear) is made of a bronze alloy (stannum bronze), designed for wear resistance and durability under load.

🎯 Key Features & Advantages

• High durability & robust build (aluminium or cast-iron housing depending on size) for industrial conditions.

• Low noise and smooth operation due to precise machining and ground gear-surfaces.

• Flexible mounting: flange mount (IEC B5) plus possibly other mount options depending on model.

• Good reduction ratios (i.e. high torque output at low speed) — suitable for heavy loads, conveyors, industrial machinery, pumps etc.

• “Lubricated for life” — many TGPL gearboxes come pre-lubricated and designed for maintenance-free service under normal conditions.

Please contact Rohima for dispatch related questions 9916202500

Freight Extra.
