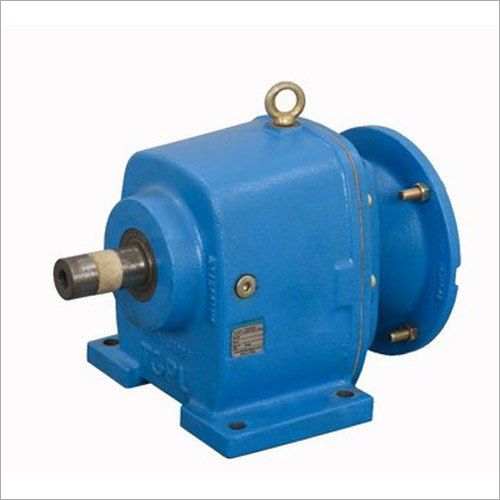

TGPL 3-stage Inline Helical Gear Box ISS

The TGPL 3 Stage Inline Gearbox SEP Series is a high-efficiency industrial helical gearbox designed for applications requiring high reduction ratios, high torque, and continuous duty operation. Built with precision-cut helical gears and a robust cast iron housing, TGPL SEP gearboxes deliver smooth power transmission, low noise, and long service life.

Key Features of TGPL SEP 3 Stage Inline Gearbox

• High torque capacity with compact inline design

• Three-stage helical gear reduction for large ratios

• High efficiency compared to worm gearboxes

• Precision-machined gears for low vibration and noise

• Heavy-duty bearings for long operational life

• Suitable for continuous and heavy-duty applications

Technical Highlights

• Gear Type: Helical

• Stages: 3 Stage Reduction

• Mounting: Foot mounted / Flange mounted

• Input: IEC Standard Motor Flange (B5 / B14)

• Output: Solid shaft / Hollow shaft

• Lubrication: Splash lubrication

• Housing: Close-grained cast iron

Advantages of TGPL 3 Stage Inline Gearbox

• Higher efficiency (92–96%) than worm gearboxes

• Lower power consumption and heat generation

• Compact design saves installation space

• Ideal for low RPM, high torque requirements

• Reduced maintenance and operating cost

Applications

• Conveyor systems

• Material handling equipment

• Mixers and agitators

• Packaging machinery

• Cement, steel, sugar, and power plants

• Heavy industrial automation systems
