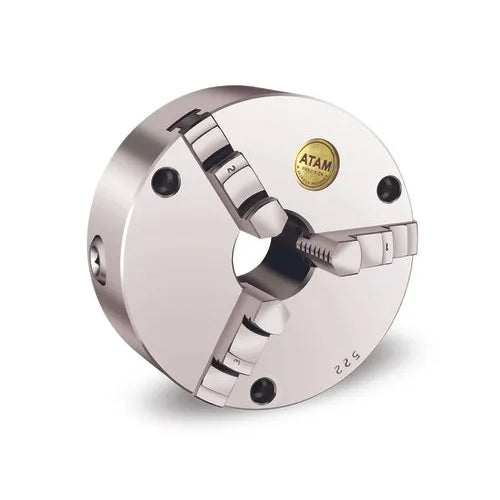

Self Centering Chuck – Precision Workholding Solution for Machining
When it comes to precision, efficiency, and durability in machining operations, a Self Centering Chuck stands out as an essential tool for every workshop. Designed to automatically align workpieces with the axis of rotation, this chuck eliminates manual adjustments, saving valuable setup time and ensuring accuracy. Whether you are working with lathes, milling machines, drilling machines, or CNC systems, a self-centering chuck is your go-to solution for high-quality clamping performance.
What is a Self Centering Chuck?

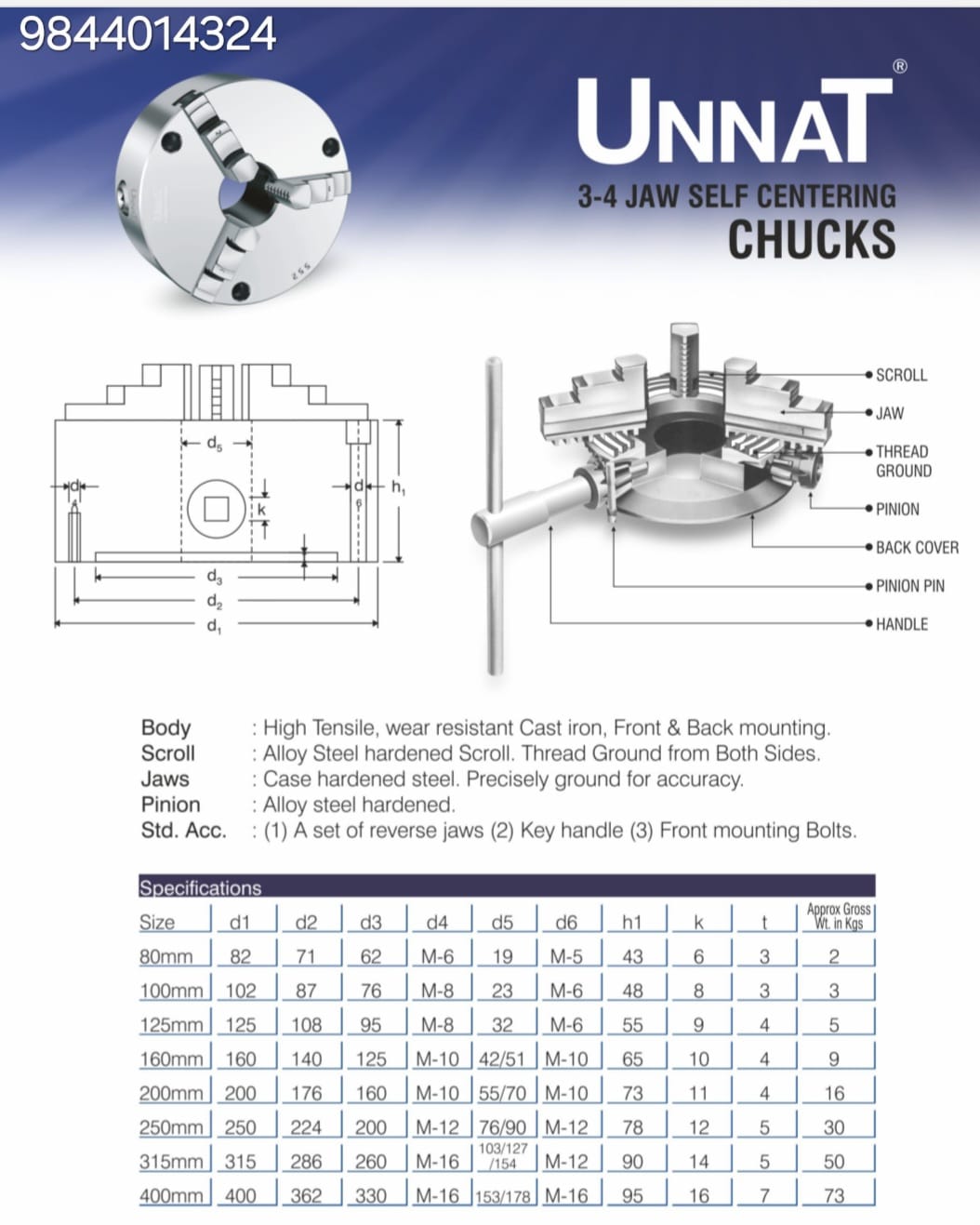

A self-centering chuck, also known as a scroll chuck, is a workholding device that grips a component and automatically positions it in the center. This chuck uses a scroll plate mechanism that moves all jaws simultaneously when the chuck key is turned. The synchronized motion ensures that the workpiece is centered quickly, without the need for repeated adjustments.
This feature makes the self-centering chuck a preferred choice for machinists and industries that require high repeatability and precision.
Key Features of Self Centering Chuck
- Automatic Alignment – All jaws move together, ensuring the workpiece remains perfectly centered.
- Versatility – Compatible with cylindrical, hexagonal, and irregular workpieces.
- Robust Build – Made from hardened steel or cast iron for long-lasting durability.
- High Accuracy – Provides repeatable precision in clamping and machining.
- Time-Saving Design – Reduces setup time compared to independent chucks.
Types of Self Centering Chucks
- 3-Jaw Self Centering Chuck – The most common type, ideal for round and hexagonal workpieces. Offers quick clamping and high concentricity.
- 4-Jaw Self Centering Chuck – Suitable for square workpieces and provides a stronger grip. Commonly used for heavier machining tasks.
- 6-Jaw Self Centering Chuck – Designed for thin-walled or delicate materials to reduce distortion while gripping.
Each type is engineered for specific machining needs, giving users flexibility depending on their application.
Applications of Self Centering Chuck
The Self Centering Chuck is widely used in industries where precision machining is critical. Some key applications include:
- Lathe Machines – Holding cylindrical workpieces for turning operations.
- Milling & Drilling – Securing parts for accurate drilling and milling processes.
- CNC Machining – Ensuring consistent alignment in automated production.
- Metalworking & Fabrication – Offering secure clamping for shaping and cutting tasks.
- Woodturning – Assisting craftsmen in creating symmetrical and precise wooden components.
This versatility makes the chuck a reliable investment for workshops, factories, and toolrooms.
Advantages of Using a Self Centering Chuck
- Improved Productivity – Faster setup times mean more work completed in less time.
- Consistent Precision – Ensures repeatable accuracy for batch production.
- Ease of Use – Requires minimal operator skill for accurate workpiece positioning.
- Reduced Human Error – Automatic alignment minimizes the chance of misalignment.
- Cost-Effective – Long-lasting performance reduces the need for frequent replacements.
Why Choose Our Self Centering Chuck?
Our Self Centering Chucks are manufactured with precision engineering and high-grade materials to deliver unmatched performance. Each chuck undergoes strict quality checks to ensure durability, accuracy, and reliability in every machining application.
- Premium Material Construction – Hardened steel for strength and wear resistance.
- High Clamping Force – Secure grip for stable machining.
- Smooth Operation – Precision scroll mechanism for effortless jaw movement.
- Multiple Sizes Available – Choose the perfect size to suit your lathe or CNC machine.
Maintenance Tips for Longer Life
To ensure your chuck delivers long-lasting service, follow these maintenance practices:
- Clean the jaws and scroll regularly to prevent debris buildup.
- Lubricate the moving parts to reduce wear and tear.
- Check alignment periodically for accuracy.
- Avoid over-tightening to extend the life of jaws and scroll plates.
Conclusion
A Self Centering Chuck is a must-have for machinists who value speed, precision, and reliability. From metalworking industries to woodturning workshops, this chuck delivers consistent results and improves productivity. With its ability to automatically align workpieces, reduce errors, and enhance machining accuracy, it’s the perfect investment for professionals and businesses looking to optimize their operations.
Upgrade your workshop today with our high-quality Self Centering Chuck – engineered for precision, built for durability, and designed to meet all your machining needs.
