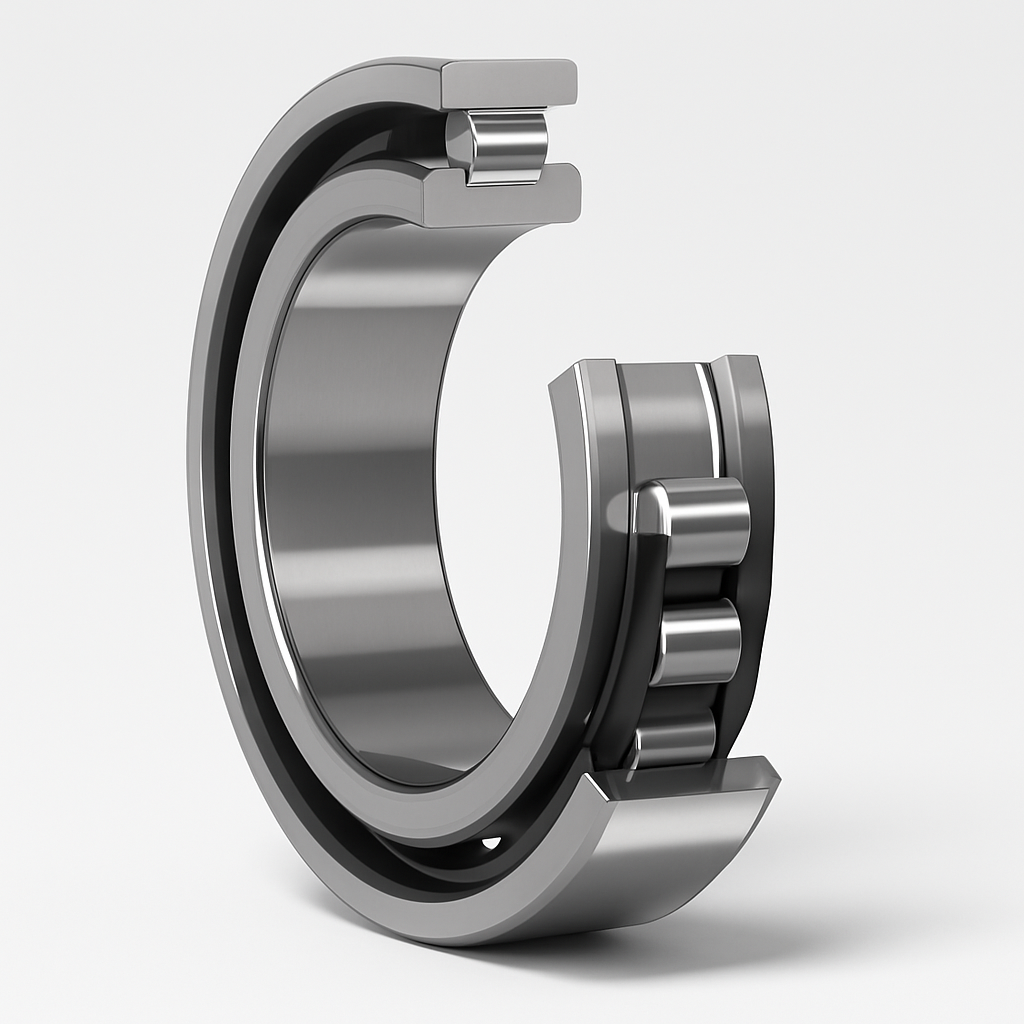

Cylindrical Roller Bearings N10 Series

N10 Series – Key Features

• Type: Single-row cylindrical roller bearings.

• Contact: Radial load carrying only (no axial load capacity).

• Cage: Usually high-strength brass, phenolic, or engineered polymer cages for high-speed operation.

• Designs:

  • N10: Single-row with outer ring fixed ribs, inner ring without ribs.

  • Can be combined with angular contact ball bearings to handle axial loads in spindle arrangements.

🔹 Applications

• Machine tool spindles (grinding, milling, turning machines).

• High-speed motors.

• Precision equipment where rigidity and low friction are critical.

🔹 Advantages

• Very high radial load capacity despite compact size.

• High-speed capability due to optimized cage designs.

• High running accuracy (often ISO P4 / P2 tolerance class).

• Can be paired with angular contact bearings for combined load handling.

🔹 Typical Sizes

• Bore range: 20 mm – 200 mm (varies by manufacturer).

• Example part numbers: N1006, N1008, N1010, N1012, … N1020, N1030 etc.

• Weights range from a few hundred grams (small bores) to several kilograms (large bores).

Please contact Rohima for any dispatch 9916202500

Freight Extra
